Apache Tomcat is a free, open-source Java servlet that provides an HTTP web server environment for running Java applications. It is simple, easy to use, and one of the most widely used web servers in the world. Tomcat acts as a development server that can be used to test and build applications that use JSF 2, servlets/JSP, or other Java-based dynamic web technologies.

In this tutorial, we will explain how to install the latest version of Apache Tomcat using an Ubuntu 24.04 Cloud server.

Requirements

A Cloud VPS server running Ubuntu 24.04 or later.
A static IP configured on your server.
A root password configured on your VPS server in Spain.

Install Java

Apache Tomcat requires Java version 8 or later. If you do not have it installed, you can install it with the following command:

# apt install default-jdk -y

Once installed, check the Java version with the following command:

# java --version

You should see output similar to this:

openjdk 21.0.3 2024-04-16
OpenJDK Runtime Environment (build 21.0.3+9-Ubuntu-1ubuntu1)
OpenJDK 64-Bit Server VM (build 21.0.3+9-Ubuntu-1ubuntu1, mixed mode, sharing)

Download Tomcat

Before you begin, install the unzip extraction utility:

# apt update && apt install unzip

You will need to create a user and assign the appropriate permissions:

# useradd -m -d /opt/tomcat -U -s /bin/false tomcat

Next, download your desired version of Apache Tomcat. You can check the available versions on the official Tomcat website. Here is an example using the latest available version:

# wget https://dlcdn.apache.org/tomcat/tomcat-10/v10.1.23/bin/apache-tomcat-10.1.23.zip

Once downloaded, extract the archive with the following command:

# unzip apache-tomcat-10.1.23.zip && mv apache-tomcat-10.1.23/* /opt/tomcat

Then, change the owner of the /opt/tomcat directory to Tomcat with the following command:

# chown -R tomcat:tomcat /opt/tomcat/
# chmod -R 755 /opt/tomcat/

Open the Tomcat configuration file:

# nano /opt/tomcat/conf/tomcat-users.xml

Add the following lines above the </tomcat-users> line:

<role rolename="manager-gui"/>
<role rolename="admin-gui"/>
<user username="admin" password="your-password" roles="manager-gui,admin-gui"/>

You will now have an administrator account for accessing Tomcat.

Create the systemd Service File for Tomcat

Next, you will need to create a systemd service file to manage the Tomcat service. You can create it with the following command:

# nano /etc/systemd/system/tomcat.service

Add the following lines:

[Unit]
Description=Tomcat servlet container
After=network.target
[Service]
Type=forking
User=tomcat
Group=tomcat
Environment="JAVA_HOME=/usr/lib/jvm/default-java"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"
Environment="CATALINA_BASE=/opt/tomcat"
Environment="CATALINA_HOME=/opt/tomcat"
Environment="CATALINA_PID=/opt/tomcat/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"
ExecStart=/opt/tomcat/bin/startup.sh
ExecStop=/opt/tomcat/bin/shutdown.sh
[Install]
WantedBy=multi-user.target

Save and close the file. Then, reload the systemd daemon and start the Tomcat service with the following commands:

# systemctl daemon-reload
# systemctl start tomcat

You can also check the Tomcat service with the following command:

# systemctl status tomcat

You should see the following output:

● tomcat.service - Tomcat servlet container
    Loaded: loaded (/etc/systemd/system/tomcat.service; disabled; preset: enabled)
    Active: active (running) since Thu 2024-05-09 10:27:00 CEST; 6s ago
   Process: 3926 ExecStart=/opt/tomcat/bin/startup.sh (code=exited, status=0/SUCCESS)
  Main PID: 3933 (java)
     Tasks: 30 (limit: 4614)
    Memory: 122.0M (peak: 122.4M)
       CPU: 3.583s
    CGroup: /system.slice/tomcat.service
            └─3933 /usr/lib/jvm/default-java/bin/java -Djava.util.logging.config.file=/opt/tomcat/conf/logging.propert>

May 09 10:27:00 amb-ubu24 systemd[1]: Starting tomcat.service - Tomcat servlet container...
May 09 10:27:00 amb-ubu24 startup.sh[3926]: Tomcat started.
May 09 10:27:00 amb-ubu24 systemd[1]: Started tomcat.service - Tomcat servlet container.

Access the Tomcat Web Interface

Note: you will need to open port 8080 in the client panel firewall.

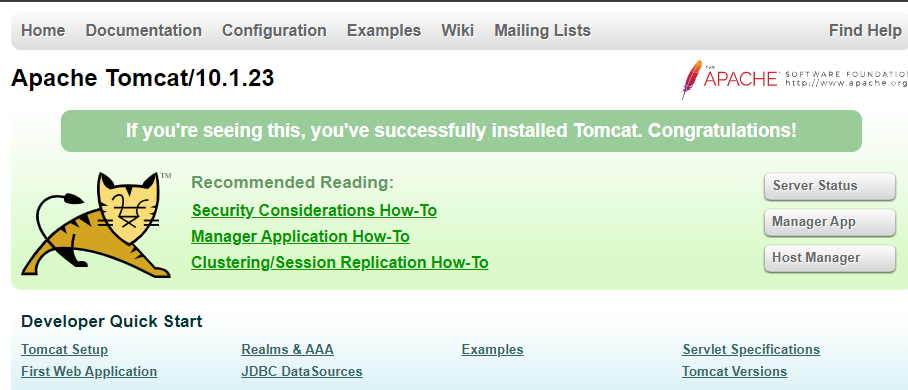

Tomcat is now installed and running on port 8080. Open your web browser and go to the URL http://your-server-ip:8080. You will be redirected to the Tomcat dashboard as shown below:

If you try to browse any of the sections, access will be denied with a 403 error. This is because Apache Tomcat can only be managed from the local machine by default, rather than remotely. We will resolve this by configuring nginx as a reverse proxy.

Configure NGINX as a Reverse Proxy

You can also configure NGINX as a reverse proxy for the Tomcat server. Nginx will then accept requests on port 80 in front of the Tomcat server.

First, install the NGINX web server with the following command:

# apt install nginx -y

Once installed, create a new virtual host configuration file for Tomcat.

# nano /etc/nginx/sites-available/tomcat.conf

Add the following lines:

upstream tomcat {
  server 127.0.0.1:8080 weight=100 max_fails=5 fail_timeout=5;
}

server {
  listen          80;
 server_name      tu-dominio.com;

   location / {
        proxy_set_header X-Forwarded-Host $host;
        proxy_set_header X-Forwarded-Server $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass http://tomcat/;
  }
}

Save and close the file. Then, enable the NGINX web server's virtual host file to apply the configuration:

# ln -s /etc/nginx/sites-available/tomcat.conf /etc/nginx/sites-enabled/
# systemctl restart nginx

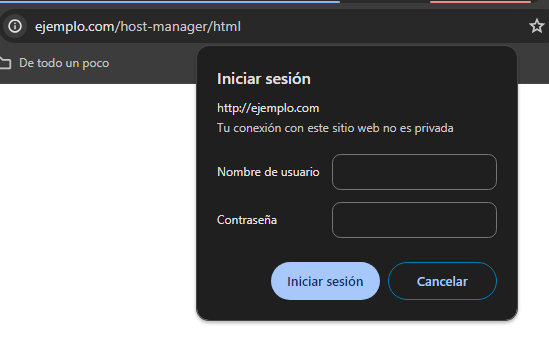

Open your web browser and go to the URL http://tu-dominio.com. Now, click Manager App or Host Manager. You will be prompted to enter a username and password as shown on the following screen:

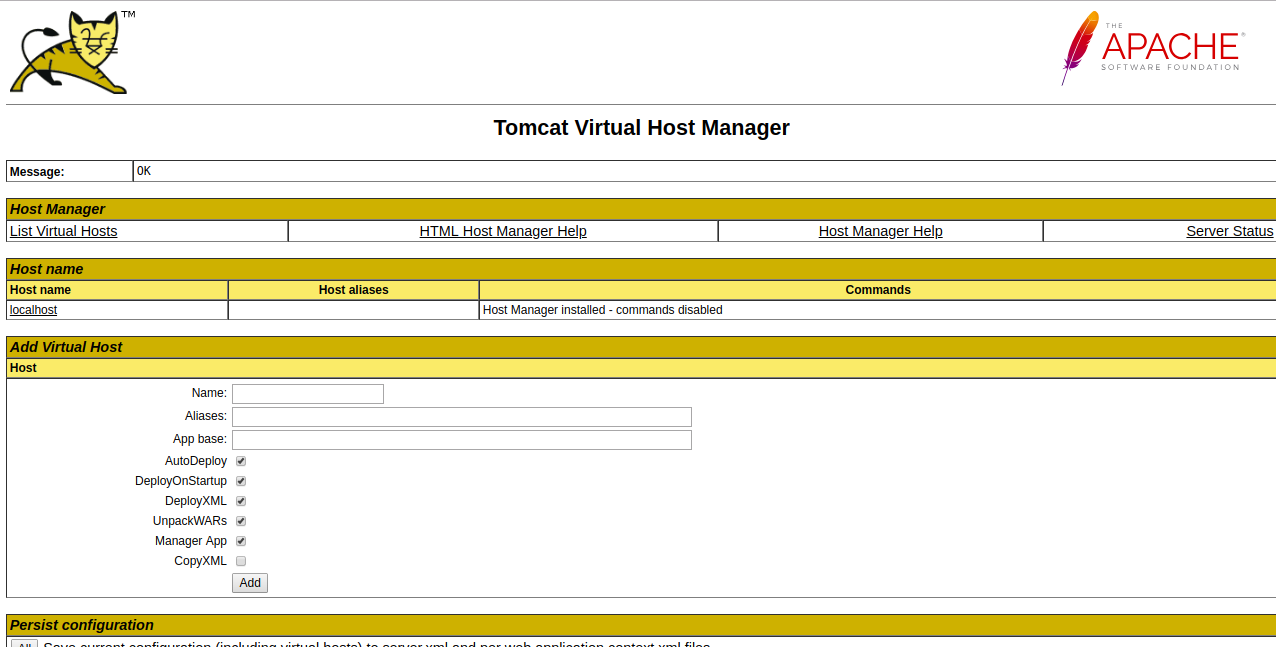

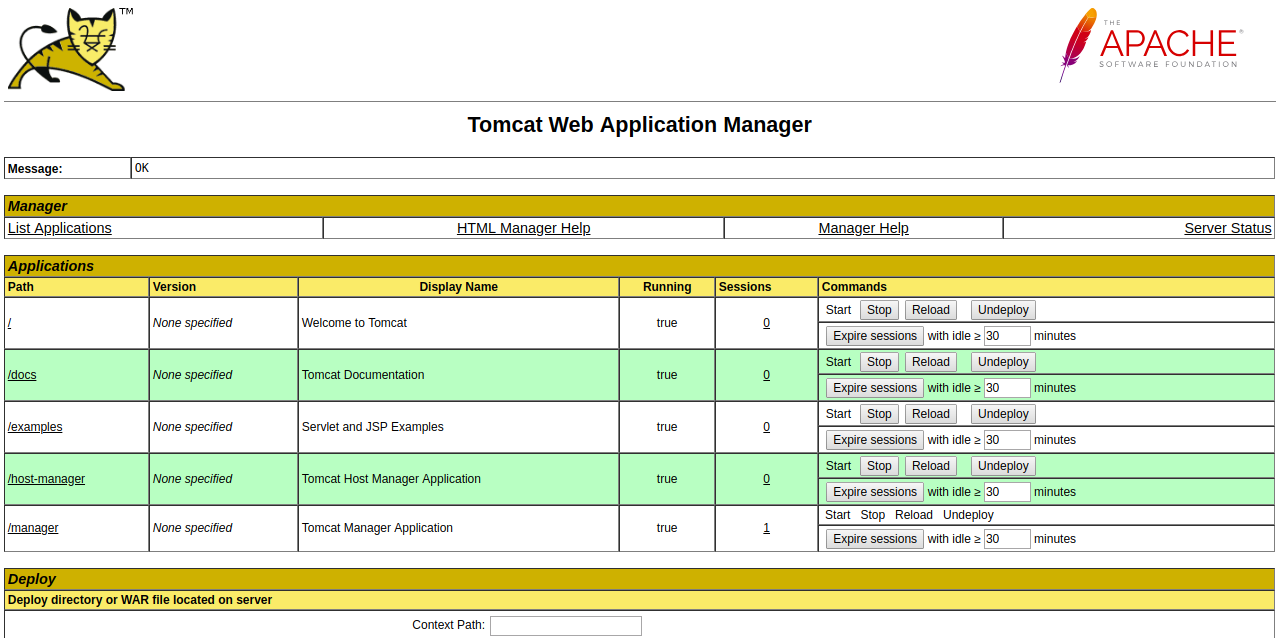

Enter your admin username and click the Sign In button. You will be redirected to the Manager App or Host Manager dashboard:

Obtain a Let's Encrypt SSL Certificate

If you now need an SSL certificate, simply install Let's Encrypt using this command:

# apt install certbot python3-certbot-nginx

Then configure the certificate with this command:

# certbot --nginx -d ejemplo.com -d www.ejemplo.com

You can find more information in our article: Obtain Let's Encrypt Certificates with Certbot

Congratulations! You can now access the Tomcat server through the URL http://ejemplo.com without specifying Tomcat port 8080.
