A web interface written in Go lets you manage WireGuard graphically, including creating and deleting users. In this tutorial, we explain how to configure it on Ubuntu 20.04.

Installing WireGuard first

To use WireGuard-UI, you need to have WireGuard installed. Run the following commands:

# apt install wireguard
# modprobe wireguard

Installing using the compiled binary

First, go to the GitHub Releases section to download the latest version. At the time of writing this tutorial, the latest version is v0.3.7.

# wget https://github.com/ngoduykhanh/wireguard-ui/releases/download/v0.3.7/wireguard-ui-v0.3.7-linux-amd64.tar.gz

Extract the archive:

# tar zxf wireguard-ui-v0.3.7-linux-amd64.tar.gz

Now run the downloaded binary:

# ./wireguard-ui

The following output will appear:

Wireguard UI
App Version     : v0.2.7
Git Commit      : b8142b80c235753e501376e21d3694cd066d977c
Git Ref         : refs/tags/v0.3.7
Build Time      : 02-03-2021 10:46:34
Git Repo        : https://github.com/ngoduykhanh/wireguard-ui
Authentication  : true
Bind address    : 0.0.0.0:5000
⇨ http server started on [::]:5000

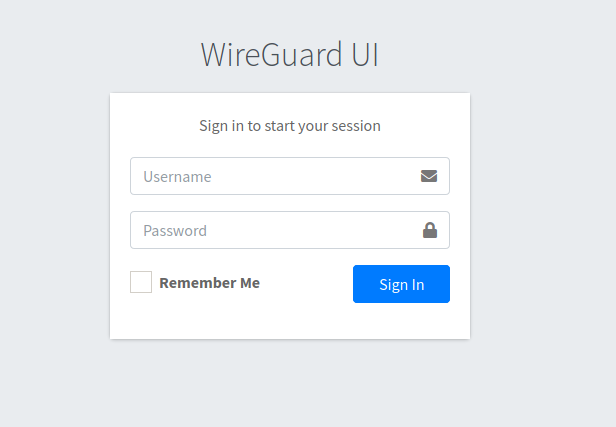

You can now access the panel using the server's public IP address and port 5000:

Installing from source code

To compile WireGuard-UI manually, you need to install the following packages:

• First, you need Yarn:

# curl -sS https://dl.yarnpkg.com/debian/pubkey.gpg | apt-key add -
# echo "deb https://dl.yarnpkg.com/debian/ stable main" | tee /etc/apt/sources.list.d/yarn.list
# apt update
# apt install yarn

• Second, you need to have Go installed

# apt-get install golang-rice golang-go gcc g++ make

• Third, you also need NodeJS

# curl -sL https://deb.nodesource.com/setup_15.x | bash -
# apt-get install -y nodejs

Download the GitHub repository:

# git clone https://github.com/ngoduykhanh/wireguard-ui.git

Run the script to prepare the assets:

# ./prepare_assets.sh

Compile the source code:

# rice embed-go
# go build -o wireguard-ui

Once the process is complete, the binary will be ready to run.

# ./wireguard-ui

Configuring WireGuard from WireGuard-UI

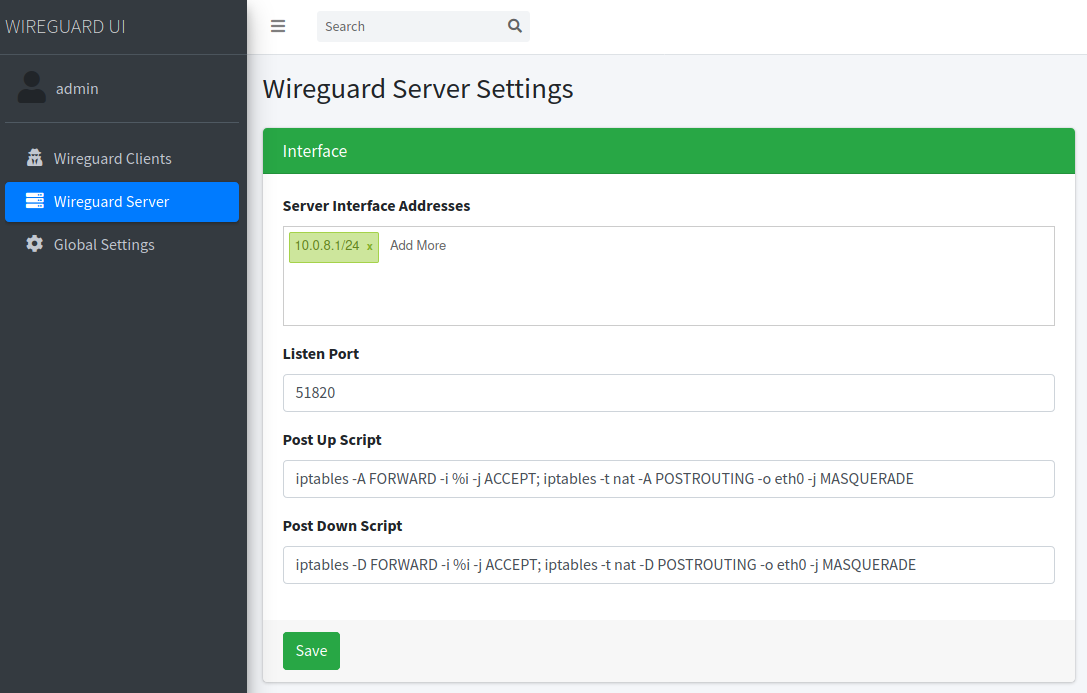

Go to the WireGuard Server section and configure the following:

You need to add the server's private web interface 10.0.8.1/24, open UDP port 51820 in the server's Firewall profile, and then add the Post Up Script and the Post Down Script:

• PostUp Script: iptables -A FORWARD -i %i -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
• PostDown Script: iptables -D FORWARD -i %i -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE

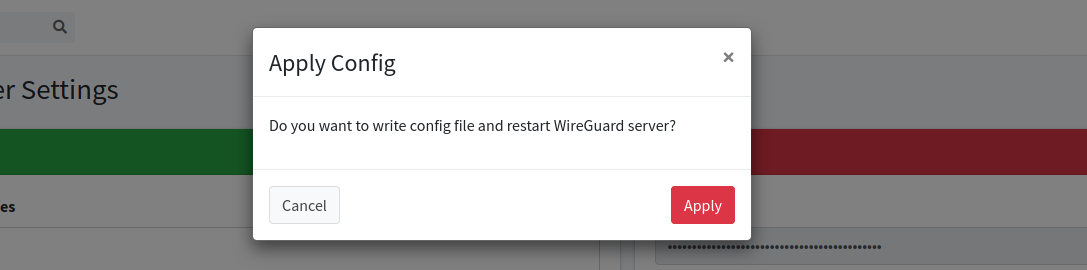

Click Save and then, at the top right, Apply Config and restart the WireGuard service.

Creating a WireGuard client

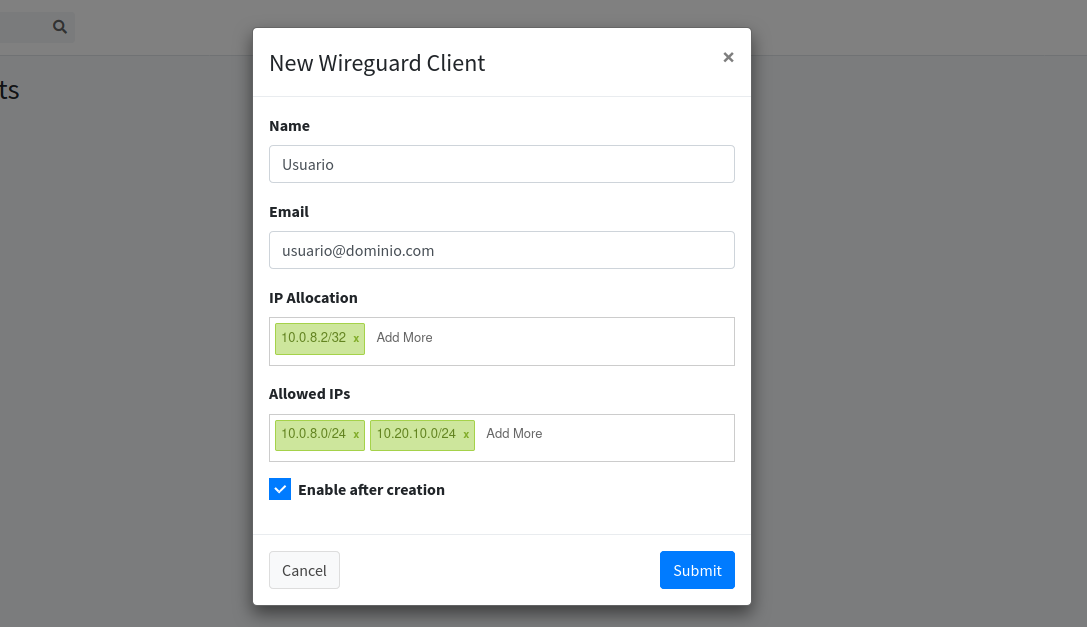

Go to WireGuard Client and then click New Client:

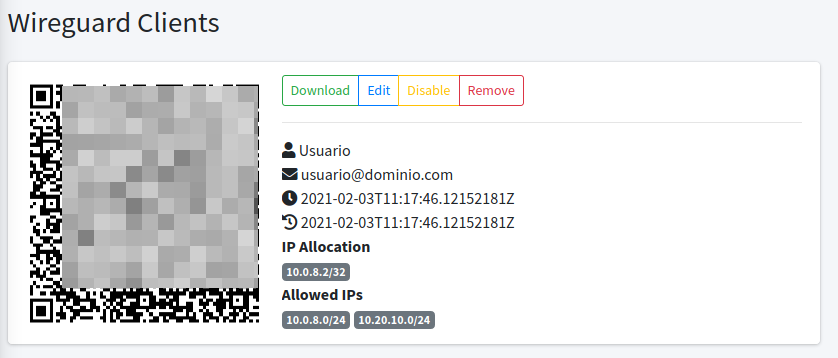

Under Allowed IPs, add the two routes 10.0.8.0/24 and 10.20.10.0/24. Once you have submitted the changes, click Apply Config. After creating the user, you can scan the QR code to configure the device or download the configuration file to import it into the WireGuard client.
