How to install and configure Apache Guacamole – Clouding.io

Apache Guacamole is software developed by the Apache organization for clientless remote desktop use (we call it clientless because no plugins or client software are required). It supports standard protocols such as VNC, RDP and SSH.

Thanks to HTML5, once Guacamole is installed on a server, all you need to access your desktops is a web browser.

You can install it natively, with Docker or NGINX Proxy, and the required libraries are Cairo, libjpeg, libpng and OSSP UUID.

Required library packages by operating system

Ubuntu: libcairo2-dev libjpeg-turbo8-dev libjpeg62-dev libpng12-dev libtool-bin libossp-uuid-dev

Debian: libcairo2-dev libjpeg62-turbo-dev libjpeg62-dev libpng12-dev libtool-bin libossp-uuid-dev

Fedora/CentOS: cairo-devel libjpeg-devel libpng-devel libtool uuid-devel

Note:

If libjpeg-turbo is not available on your platform and you do not want to compile it from source, libjpeg will also work, although it will not be as fast.

Optional dependencies:

Guacamole's optional dependencies determine which parts of guacamole-server will be used. This includes support for various remote desktop protocols, as well as any additional features of those protocols:

VNC support depends on the libvncclient library, which is part of libVNCServer.
RDP support depends on a recent version of FreeRDP (1.0 or higher, but not an unreleased version from git).
SSH support depends on libssh2, OpenSSL and Pango (a text layout and font rendering library used by Guacamole's built-in terminal emulator).
Telnet depends on libtelnet and Pango.
Kubernetes support depends on libwebsockets, OpenSSL and Pango.

The guacenc utility, provided by guacamole-server to convert screen recordings into video, depends on FFmpeg and will only be built if at least the libavcodec, libavformat, libavutil and libswscale libraries provided by FFmpeg are installed.

Important

If you do not have these dependencies, the features or protocols that depend on them will not be enabled. Read this section carefully before deciding not to install an optional dependency.

Debian/Ubuntu: libavcodec-dev libavformat-dev libavutil-dev libswscale-dev freerdp2-dev libpango1.0-dev libssh2-1-dev libtelnet-dev libvncserver-dev libwebsockets-dev libpulse-dev libssl-dev libvorbis-dev libwebp-dev

Fedora/CentOS: ffmpeg-devel freerdp-devel pango-devel libssh2-devel libtelnet-devel libvncserver-devel libwebsockets-devel pulseaudio-libs-devel openssl-devel libvorbis-devel libwebp-devel

Step-by-step installation and configuration of Apache Guacamole:

The example will use an installation on an Ubuntu 20.04 LTS (64 Bit) server with the preinstalled image, Ubuntu 18.04 Desktop (64 Bit) as a client, and a Windows 2019 Datacenter (English 64Bit) RDP client will also be added.

Installing required packages:

# apt install libcairo2-dev libjpeg-turbo8-dev libjpeg-dev libpng-dev libtool-bin libossp-uuid-dev

Installing optional packages:

# apt install libavcodec-dev libavformat-dev libavutil-dev libswscale-dev freerdp2-dev libssh2-1-dev libtelnet-dev libvncserver-dev libpulse-dev libssl-dev libvorbis-dev libwebp-dev

Installing required packages:

# apt install libcairo2-dev libjpeg-turbo8-dev libjpeg62-dev libpng12-dev libtool-bin libossp-uuid-dev

Installing optional packages:

# apt install libavcodec-dev libavformat-dev libavutil-dev libswscale-dev freerdp2-dev libssh2-1-dev libtelnet-dev libvncserver-dev libpulse-dev libssl-dev libvorbis-dev libwebp-dev

Download the Guacamole server package (you can find the latest available version at Apache Guacamole Downloads):

# wget https://downloads.apache.org/guacamole/1.5.5/source/guacamole-server-1.5.5.tar.gz

Extract the downloaded tar.gz file:

# tar -xvf guacamole-server-1.5.5.tar.gz

Go to the extracted directory:

# cd guacamole-server-1.5.5/

Configure using the included script:

# ./configure --with-init-dir=/etc/init.d

Compile:

# make

Install the build:

# make install

Update the library configuration:

# ldconfig

Reload daemons:

# systemctl daemon-reload

Start and enable:

# systemctl start guacd && systemctl enable guacd

Check the status of the Guacamole service:

# systemctl status guacd

Verify operation via the port:

# ss -lnpt | grep guacd

Install tomcat:

# apt install tomcat9 tomcat9-admin tomcat9-common tomcat9-user

Verify operation via the port:

# ss -lnpt | grep java

Download the webapp binary package for tomcat:

# wget https://downloads.apache.org/guacamole/1.5.5/binary/guacamole-1.5.5.war

Move it to the tomcat version's directory:

# mv guacamole-1.5.5.war /var/lib/tomcat9/webapps/guacamole.war

Restart the service:

# systemctl restart tomcat9 guacd

Create a directory for the configuration files for using guacamole:

# mkdir /etc/guacamole/

Create a properties file:

# vi /etc/guacamole/guacamole.properties

Enter the following information (you can specify the user directory or desired port):

# Hostname and port of guacamole proxy
guacd-hostname: localhost
guacd-port: 4822
# Auth provider class (authenticates user/pass combination, needed if using the provided login screen)
auth-provider: net.sourceforge.guacamole.net.basic.BasicFileAuthenticationProvider
basic-user-mapping: /etc/guacamole/user-mapping.xml

Obtain a password for a Guacamole user:

# echo -n CONTRASEÑA | openssl md5

Modify the user mapping file:

# vi /etc/guacamole/user-mapping.xml

Example file configuration (entering the password parameter is not necessary):

<user-mapping>
  <!-- Per-user authentication and config information -->
  <authorize username="admin" password="CONTRASEÑA_EN_MD5" encoding="md5">
   <connection name="GuacamoleVNC">
     <protocol>vnc</protocol>
     <param name="hostname">localhost</param>
     <param name="port">5901</param>
     <param name="password">XXXX</param>
   </connection>
   <connection name="GuacamoleSSH">
     <protocol>ssh</protocol>
     <param name="hostname">localhost</param>
     <param name="username">root</param>
     <param name="port">22</param>
     <param name="password">XXXX</param>
   </connection>
   <connection name="UbuntuRDP">
     <protocol>rdp</protocol>
     <param name="hostname">10.20.10.7</param>
     <param name="username">xrdpuser</param>
     <param name="port">3389</param>
     <param name="password">XXXXX</param>
  </connection>
  <connection name="WindowsRDP">
     <protocol>rdp</protocol>
     <param name="hostname">10.20.10.5</param>
     <param name="port">3389</param>
     <param name="username">administrator</param>
     <param name="password">XXXX</param>
     <param name="ignore-cert">true</param>
  </connection>
  <connection name="WindowsTELNET">
     <protocol>telnet</protocol>
     <param name="hostname">10.20.10.5</param>
     <param name="port">23</param>
     <param name="username">administrator</param>
     <param name="password">XXXX</param>
  </connection>
 </authorize>
</user-mapping>

Change permissions for use by the user only:

# chmod 600 /etc/guacamole/user-mapping.xml

Assign owner and group permissions:

# chown tomcat9:tomcat9 /etc/guacamole/user-mapping.xml

Restart or reload the services:

# systemctl restart tomcat9 guacd

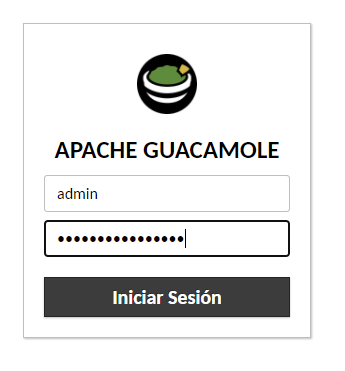

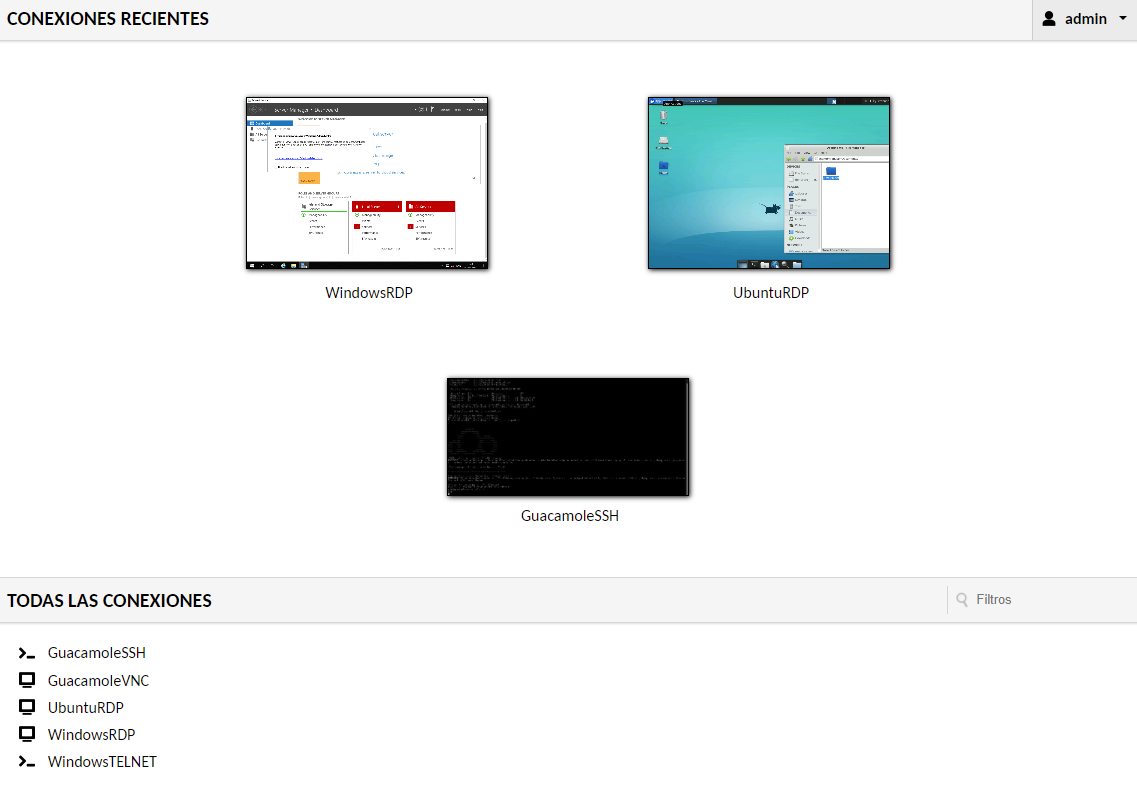

At this point, you should be able to access the web application served by tomcat through port 8080 (Check Firewall) from your browser, displaying the guacamole home page with the configured user and connections when you log in:

For more protection, you can install fail2ban to block connection attempts:

# apt install fail2ban

Review the configuration file to check whether the jail is active:

# vi /etc/fail2ban/jail.d/defaults-debian.conf

The following should appear:

[guacamole]
enabled = true

Check the status using:

# fail2ban-client status

Finally, choose your preferred web server for the reverse proxy:

Quick configuration for Apache Proxy with HTTPS

Installing the service:

# apt install apache2

Enabling modules:

# a2ensite default-ssl && a2enmod ssl && a2enmod proxy && a2enmod proxy_http && a2enmod proxy_balancer && a2enmod lbmethod_byrequests

Restart or reload the service:

# systemctl restart apache2

Modify the default site:

# vi /etc/apache2/sites-available/default-ssl.conf

Enter/modify the basic required configuration:

<IfModule mod_ssl.c>
  <VirtualHost _default_:443>
    ServerAdmin webmaster@localhost
    DocumentRoot /var/www/html
    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined
    SSLEngine on
    SSLCertificateFile /etc/ssl/certs/ssl-cert-snakeoil.pem
    SSLCertificateKeyFile /etc/ssl/private/ssl-cert-snakeoil.key
    SSLProxyEngine on
    SSLProxyVerify none
    SSLProxyCheckPeerCN off
    SSLProxyCheckPeerName off
    SSLProxyCheckPeerExpire off
    <Location /guacamole/>
      Order allow,deny
      Allow from all
      ProxyPass http://IP:8080/guacamole/ flushpackets=on
      ProxyPassReverse http://IP:8080/guacamole/
    </Location>
    SSLCertificateFile /etc/ssl/private/ssl-cert-snakeoil.key
    SSLCertificateKeyFile /etc/ssl/private/ssl-cert-snakeoil.key
    <FilesMatch "\.(cgi|shtml|phtml|php)$">
      SSLOptions +StdEnvVars
    </FilesMatch>
    <Directory /usr/lib/cgi-bin>
      SSLOptions +StdEnvVars
    </Directory>
  </VirtualHost>
 </IfModule>

To create the Let's Encrypt certificate, you can use the following article depending on the version used, or install the packages required for Let's Encrypt certification:

# apt install certbot python3-certbot-apache

Certify the domain or subdomain using Let's Encrypt:

# certbot --apache -d sub.domain.com

Quick configuration for NGINX Proxy with HTTPS

Installing the NGINX web service:

# apt install nginx

Modify the default site file:

# vi /etc/nginx/sites-available/default

Enter/modify the basic configuration:

server {
         listen 80 default_server;
         listen [::]:80 default_server;
         return 301 https://sub.domain.com;
        }
server {
       listen 443 ssl;
       server_name sub.domain.com;
       ssl_certificate /etc/ssl/certs/ssl-cert-snakeoil.pem;
       ssl_certificate_key /etc/ssl/private/ssl-cert-snakeoil.key;
       location / {
                  proxy_buffering off;
                  proxy_pass http://localhost:8080/guacamole/;
                  proxy_http_version 1.1;
                  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                  proxy_set_header Upgrade $http_upgrade;
                  proxy_set_header Connection $http_connection;
                  access_log off;
                  }
       location /.well-known/ {
                              allow all;
                              root /var/www/html;
                              }
     }

Installing the packages required for Let's Encrypt certification:

# apt install certbot python3-certbot-nginx

Certify the domain or subdomain using Let's Encrypt:

# certbot --nginx -d sub.domain.com

Once this process is complete, you can access it through your web browser without specifying a port and with a redirect to HTTPS.

We hope this article has been useful. If you have any questions about this or any other issue related to your servers on Clouding, you can write to us at soporte@clouding.io. We will be happy to help.
